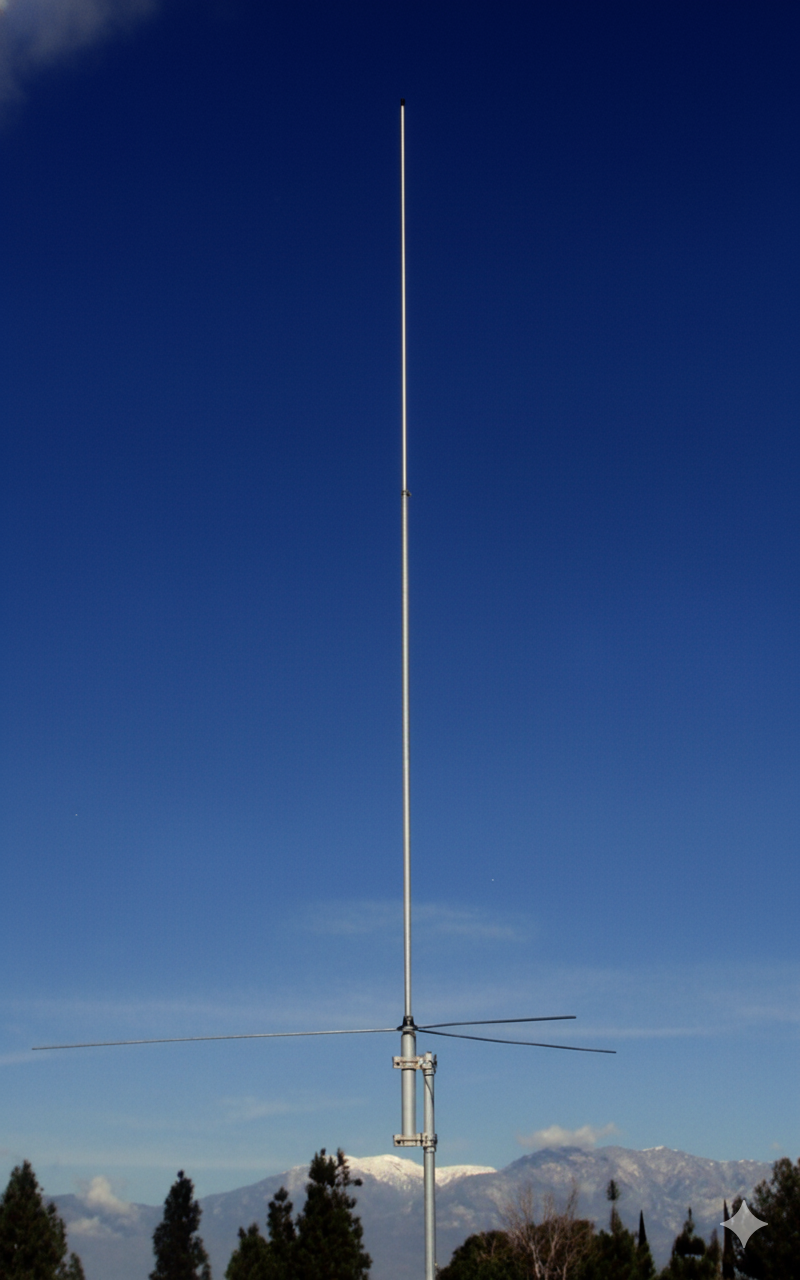

Comet 5/8 Ground Pane FM Broadcast Antenna
$135.00
A very easy to set up and install FM Broadcast antenna. Its 3dB gain will result in an effective radiated power twice that of the input power. A 6/8 ground planer antenna has a lower angle of radiation when compared to a dipole antenna, This compresses more of the signal into the horizontal plane thereby doubling the input power Check out the specifications:
CFM-95SL
Low Power FM Broadcast Antenna
88-108MHz Tunable Antenna
Sliding aluminum sections allow setting the antena length to the exact dimension needed for the most efficient transmitted signal. Should the TX frequency ever need to be changed, the CFM-95SL is easily re-tuned to the new frequency.
Gain: 3.4dBi
Band-width: 4MHz after tuning
VSWR: 1.5:1 or less
Max Power: 200 watts
Height:
83 inches (108MHz)
104.5 inches (88MHz)
Weight: 2 lbs 7 oz
Connector: SO-239
The CFM-95SL is in use with thousands of low power FM stations world-wide providing better coverage area and increased signal strength when compared to a standard 1/4 wave antenna.
